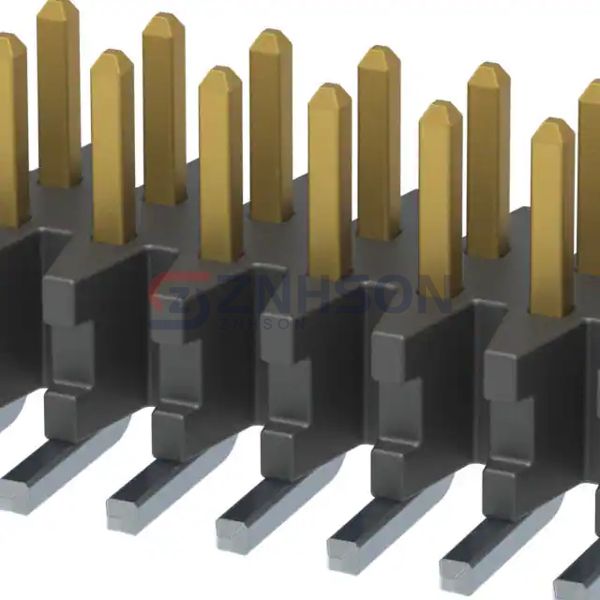

FTMH-111-03-L-DV-P
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 22POS 1MM
$7.08
Available to order
Reference Price (USD)
1+
$4.38000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the FTMH-111-03-L-DV-P rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the FTMH-111-03-L-DV-P meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.065" (1.65mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.8A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
499922-4
Samtec Inc.
TSW-108-14-S-D
Samtec Inc.
HTSW-132-21-F-D
Amphenol ICC (FCI)
77317-804-30LF
JAE Electronics
FI-W5P-HFE
TE Connectivity AMP Connectors

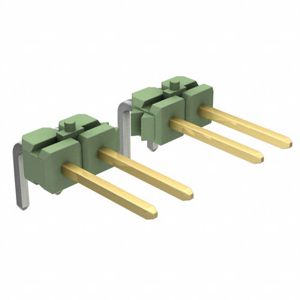

1-825437-6
Omron Electronics Inc-EMC Div

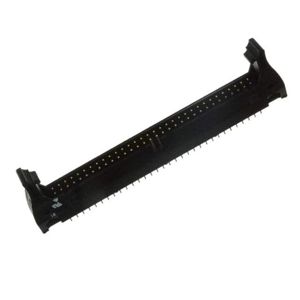

XG4A-6471
