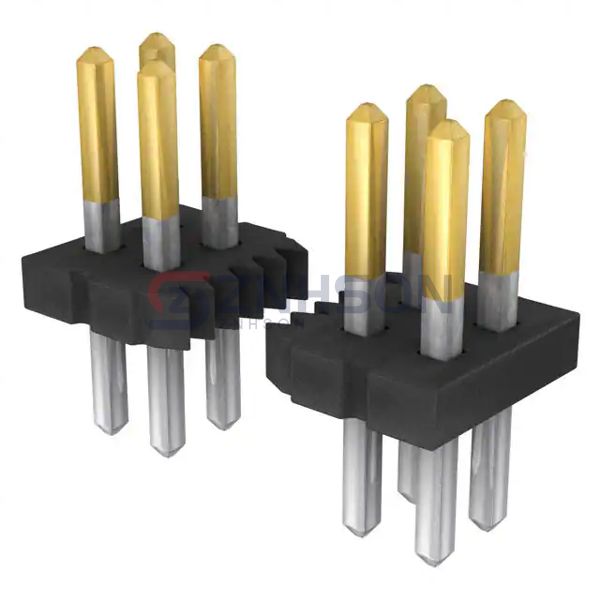

FTS-120-01-L-D

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN HEADER VERT 40POS 1.27MM

Datasheet:

FTS-120-01-L-D Datasheet

$5.21

Available to order

Reference Price (USD)

$4.82000

10+

$4.63100

25+

$4.24520

50+

$4.05220

100+

$3.85920

250+

$3.37680

500+

$3.28032

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The FTS-120-01-L-D by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the FTS-120-01-L-D supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header, Cuttable
Contact Type: Male Pin
Pitch - Mating: 0.050" (1.27mm)
Number of Positions: 40
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.120" (3.05mm)
Contact Length - Post: 0.090" (2.29mm)
Overall Contact Length: 0.244" (6.20mm)
Insulation Height: 0.034" (0.86mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3.4A per Contact
Voltage Rating: -
