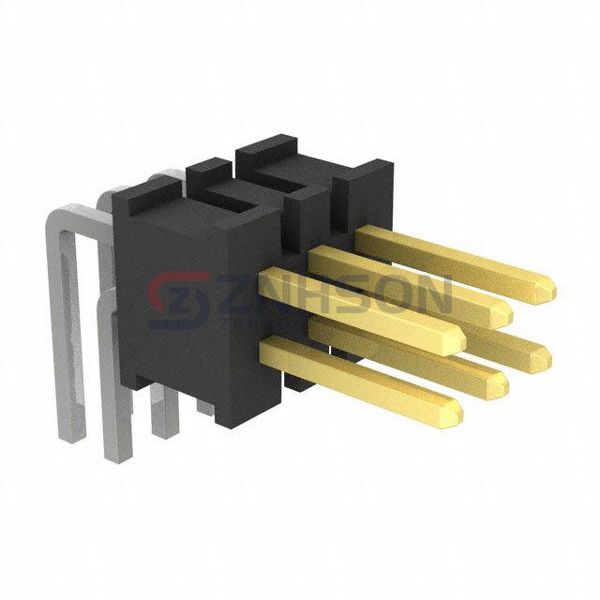

FTSH-103-03-S-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 6POS 1.27MM
$2.89
Available to order
Reference Price (USD)
1+
$1.77000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTSH-103-03-S-D-RA male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.065" (1.65mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.135" (3.43mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
