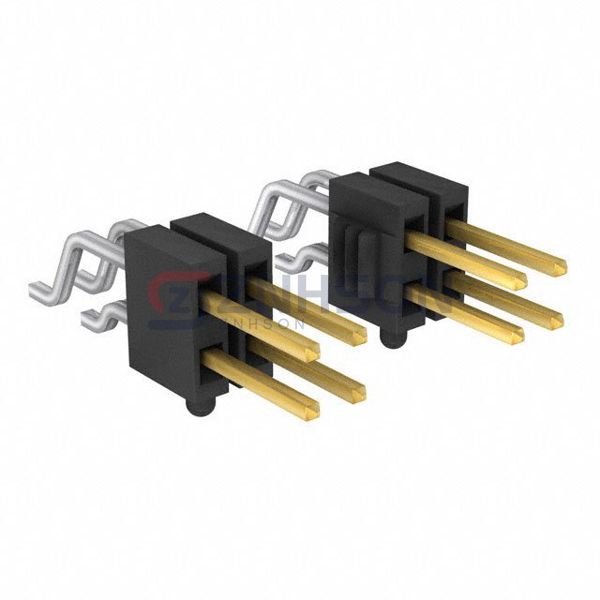

FTSH-110-01-L-DH-A
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 20POS 1.27MM
$6.96
Available to order
Reference Price (USD)
1+
$4.33000
46+
$3.80609
138+
$3.46000
506+
$2.94101
1,012+
$2.50850
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTSH-110-01-L-DH-A by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the FTSH-110-01-L-DH-A supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.135" (3.43mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
350-10-123-00-006000
Samtec Inc.
TFM-120-01-F-D
Mill-Max Manufacturing Corp.
330-10-104-40-027000
Preci-Dip
350-10-103-00-001101
TE Connectivity AMP Connectors
5102154-7
Samtec Inc.
TSM-108-02-T-DV-A-P-TR
Samtec Inc.
FTS-143-01-L-D
Hirose Electric Co Ltd

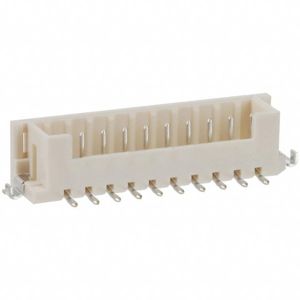

DF3E-10P-2V(21)
Samtec Inc.

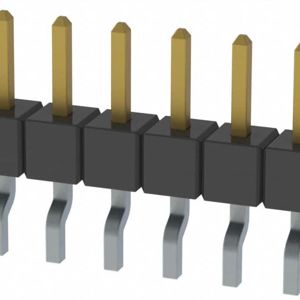

MMT-111-01-S-SH-K-TR
