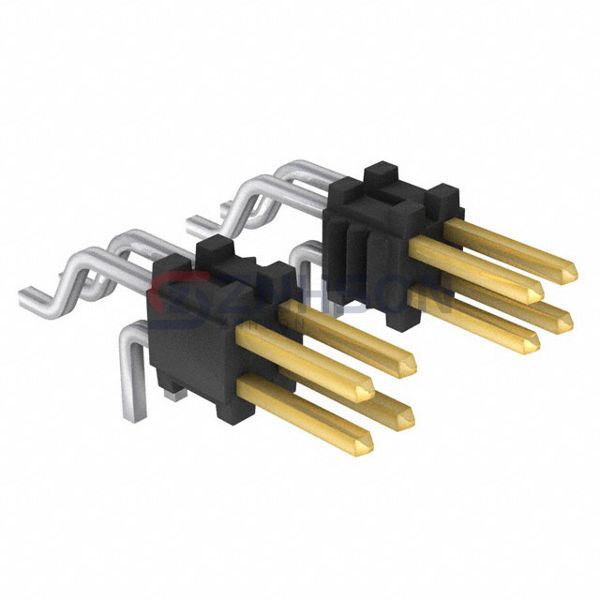

FTSH-111-01-L-MT
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 22POS 1.27MM
$3.72
Available to order
Reference Price (USD)
1+
$3.45000
10+
$3.30700
25+
$3.03160
50+
$2.89400
100+
$2.75620
250+
$2.41164
500+
$2.34274
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the FTSH-111-01-L-MT rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle; Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.135" (3.43mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PEC27SFAN
Preci-Dip
890-80-040-10-003101
Samtec Inc.
TMM-132-01-S-D-SM-A
Samtec Inc.
FTS-117-02-L-DV-A
Molex
22-11-1051
TE Connectivity AMP Connectors
4-103327-0-16
Molex
5015681207
Samtec Inc.

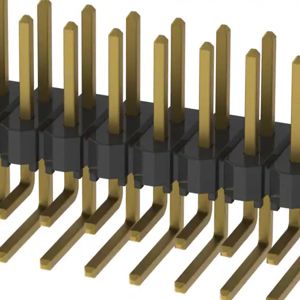

HTSW-117-08-G-D-RA
Amphenol ICC (FCI)

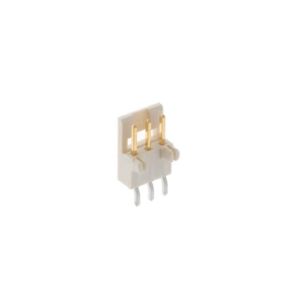

95000-103LF
