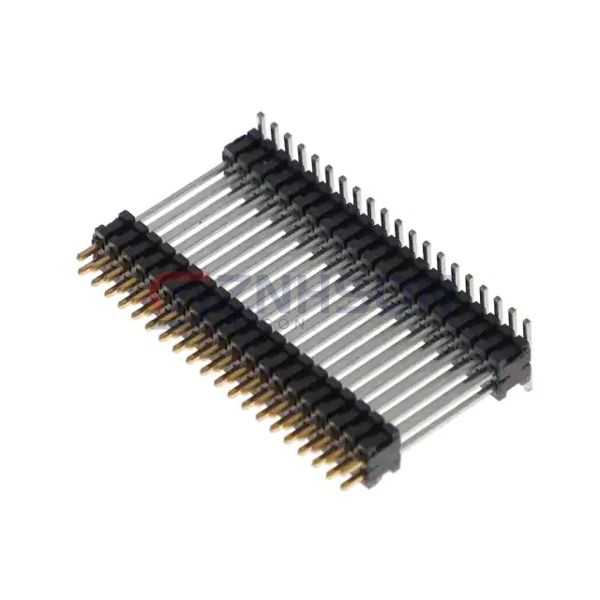

FW-20-05-L-D-525-075
Samtec Inc.
Samtec Inc.
CONN HDR 40POS 0.05 STACK SMD
$9.66
Available to order
Reference Price (USD)
1+
$6.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layouts with the FW-20-05-L-D-525-075 by Samtec Inc., a high-quality rectangular connector for board spacers and stackers. Designed for versatility, these connectors support various pitch options and mounting styles. The FW-20-05-L-D-525-075 is ideal for use in LED lighting, power supplies, and wearable technology. Specific applications include LED displays, AC/DC converters, and fitness trackers where compact and reliable connections are vital.
Specifications
- Product Status: Active
- Number of Positions: 40
- Pitch: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing: 0.050" (1.27mm)
- Length - Overall Pin: 0.600" (15.240mm)
- Length - Post (Mating): 0.075" (1.905mm)
- Length - Stack Height: 0.525" (13.335mm)
- Length - Tail: -
- Mounting Type: Surface Mount
- Termination: Solder
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
- Color: Black
