FWJ-02-04-T-S
Samtec Inc.
Samtec Inc.

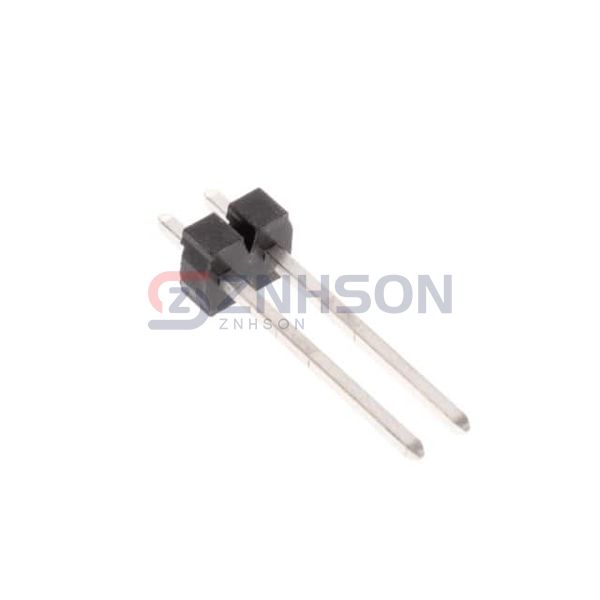

CONN HEADER VERT 2POS 3.96MM
$0.76
Available to order
Reference Price (USD)
1+
$0.47000
10+
$0.44100
100+
$0.33810
500+
$0.29400
1,000+
$0.24255
5,000+
$0.21315
10,000+
$0.19845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FWJ-02-04-T-S by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.809" (20.55mm)
- Contact Length - Post: 0.156" (3.96mm)
- Overall Contact Length: 1.090" (27.69mm)
- Insulation Height: 0.125" (3.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 600VAC, 845VDC
