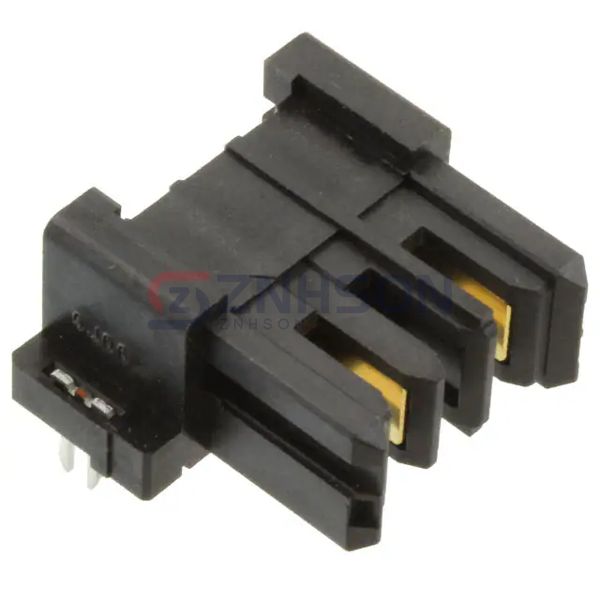

FX30B-2P-7.62DS
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 2POS 7.62MM
$5.04
Available to order
Reference Price (USD)
1+
$4.13000
10+
$3.96000
240+
$3.30000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FX30B-2P-7.62DS by Hirose Electric Co Ltd is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Hirose Electric Co Ltd delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.300" (7.62mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.433" (11.00mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.90µin (0.099µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 16A
- Voltage Rating: 250V
