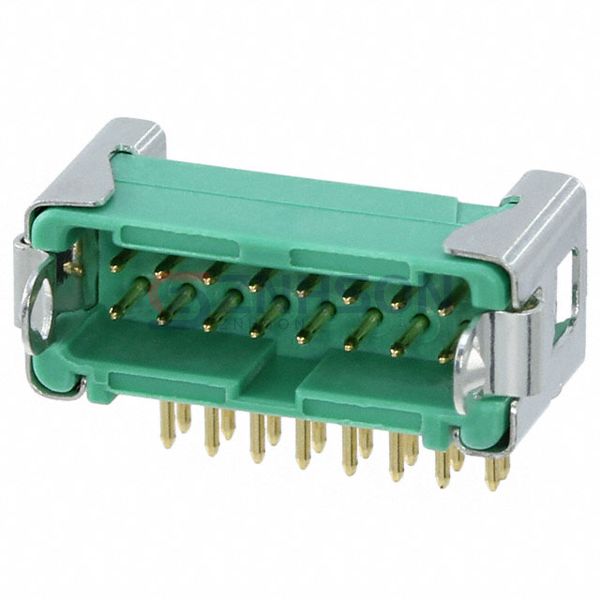

G125-MH11605L3P
Harwin Inc.
Harwin Inc.
CONN HEADER R/A 16POS 1.25MM
$15.15
Available to order
Reference Price (USD)
1+
$12.37000
10+
$11.24200
100+
$9.55570
500+
$8.15046
1,000+
$7.47593
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The G125-MH11605L3P by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the G125-MH11605L3P supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Solder Retention
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A
- Voltage Rating: 250V
