G125-MH12005L7P
Harwin Inc.
Harwin Inc.
CONN HEADER R/A 20POS 1.25MM
$11.90
Available to order
Reference Price (USD)
1+
$9.77000
10+
$9.34100
100+
$7.85510
500+
$6.58130
1,000+
$5.81702
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The G125-MH12005L7P by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the G125-MH12005L7P supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Solder Retention
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A
- Voltage Rating: 250V
Related Products
TE Connectivity AMP Connectors
2-1761609-5
Samtec Inc.
FTMH-112-03-F-DV-P-TR
TE Connectivity AMP Connectors
1-770858-1
Samtec Inc.
TSW-140-17-G-S
Samtec Inc.
TSM-112-02-T-DV-P
Molex
0449142401
Samtec Inc.
FTM-110-03-FM-DV-S
Samtec Inc.

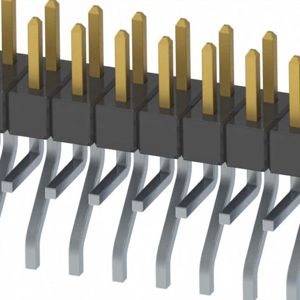

MMT-125-01-F-MT
TE Connectivity AMP Connectors

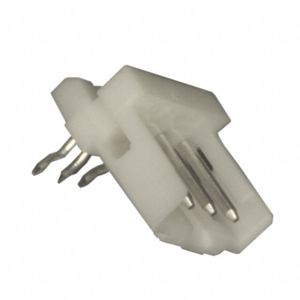

292253-3
