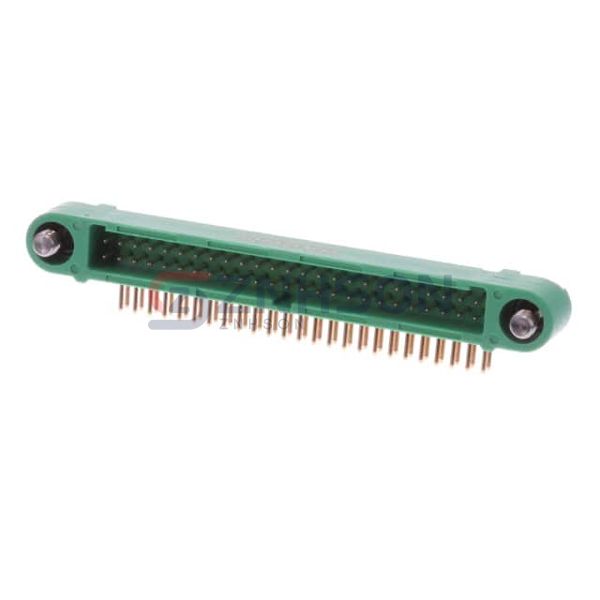

G125-MH15005M3P
Harwin Inc.
Harwin Inc.
CONN HDR 1.25MM R/A 50POS
$34.00
Available to order
Reference Price (USD)
1+
$34.00000
500+
$33.66
1000+
$33.32
1500+
$32.98
2000+
$32.64
2500+
$32.3
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The G125-MH15005M3P from Harwin Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the G125-MH15005M3P offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Harwin Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.209" (5.30mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Jackscrews, Mating Flange, Pick and Place, Polarizing Key
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A
- Voltage Rating: 450V
Related Products
Samtec Inc.
TFM-105-02-S-D-A-K
NorComp Inc.
26633001RP2
Mill-Max Manufacturing Corp.
852-90-052-20-001000
Hirose Electric Co Ltd
HIF3BB-60PA-2.54DSA(63)
Samtec Inc.
TSM-105-02-L-SH-TR
Samtec Inc.
TSW-122-05-G-D
Preci-Dip
892-18-048-10-001101

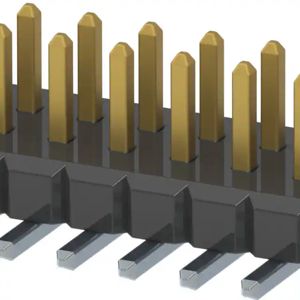

Samtec Inc.
FTM-120-02-L-SV

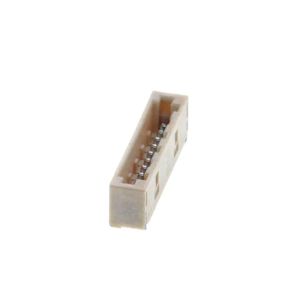

Molex
