G125-MS11205L3P
Harwin Inc.
Harwin Inc.

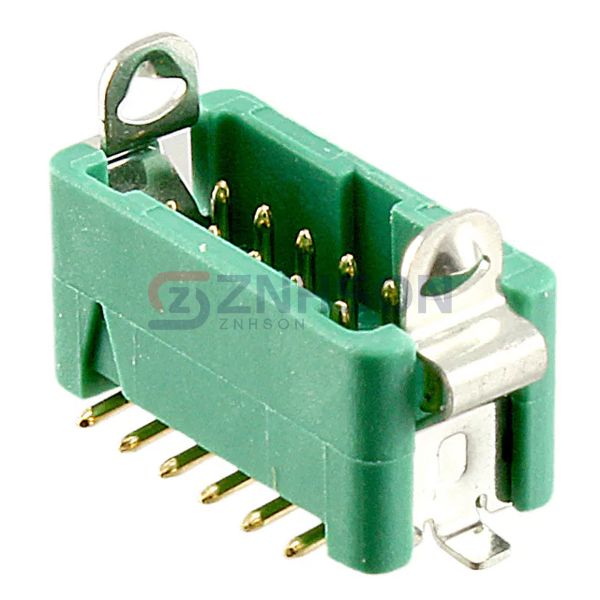

CONN HEADER SMD 12POS 1.25MM
$8.58
Available to order
Reference Price (USD)
1+
$6.74000
10+
$6.45800
100+
$5.33520
500+
$4.49280
1,000+
$3.93120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the G125-MS11205L3P rectangular connector header from Harwin Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the G125-MS11205L3P meets the highest industry standards. Harwin Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Pick and Place, Solder Retention
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A per Contact
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
800-10-064-30-001000
Samtec Inc.
TSM-108-01-L-DH-SL-K-TR
TE Connectivity AMP Connectors
9-146277-0-36
TE Connectivity AMP Connectors
292231-4
Preci-Dip
350-80-155-00-013101
Preci-Dip
830-10-043-40-001101
Samtec Inc.
FTSH-124-02-F-D
Sullins Connector Solutions

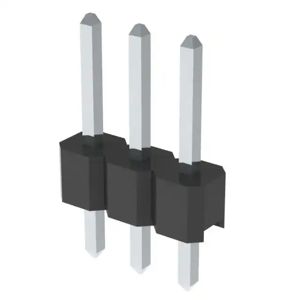

PREC003SAAN-RC
