G125-MV13405L1P
Harwin Inc.
Harwin Inc.

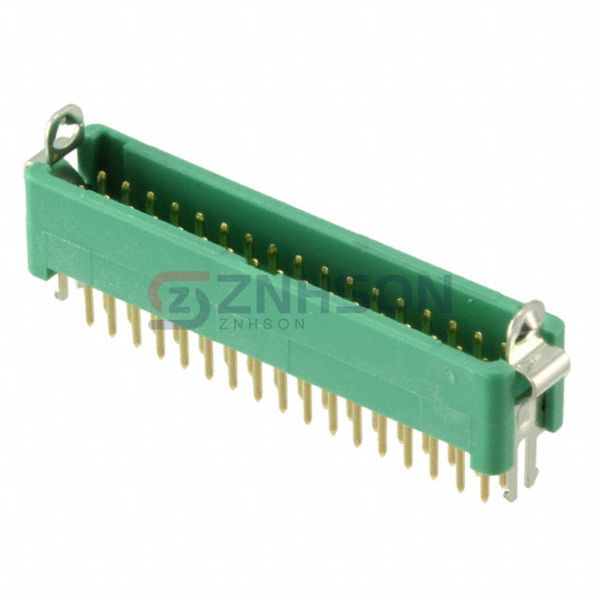

CONN HEADER VERT 34POS 1.25MM
$12.04
Available to order
Reference Price (USD)
1+
$9.45000
10+
$9.04200
100+
$7.60350
500+
$6.37050
1,000+
$5.63070
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the G125-MV13405L1P rectangular connector header from Harwin Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the G125-MV13405L1P is perfect for automotive, industrial, and consumer electronics. Harwin Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Board Lock, Pick and Place
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A per Contact
- Voltage Rating: -
