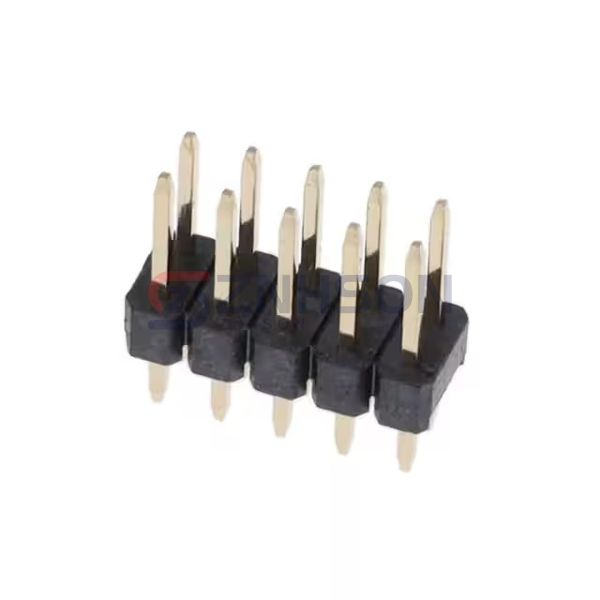

G800LQ591018EU
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)
PIN HEADER 2.54MM PITCH STR DIP,
$0.44
Available to order
Reference Price (USD)
1+
$0.44000
500+
$0.4356
1000+
$0.4312
1500+
$0.4268
2000+
$0.4224
2500+
$0.418
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the G800LQ591018EU rectangular connector header from Amphenol ICC (Commercial Products) for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Amphenol ICC (Commercial Products) is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.453" (11.50mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: 250VDC
Related Products
Molex
0026481135
Mill-Max Manufacturing Corp.
802-10-048-10-001000
Samtec Inc.
IPL1-107-02-F-D-K-TR
Samtec Inc.
TSM-105-02-S-DV-LC-P-TR
Samtec Inc.
TFM-110-02-L-D-A-P-TR
TE Connectivity AMP Connectors

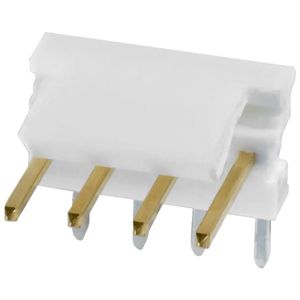

3-641214-4
