G874D141202CEU
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)

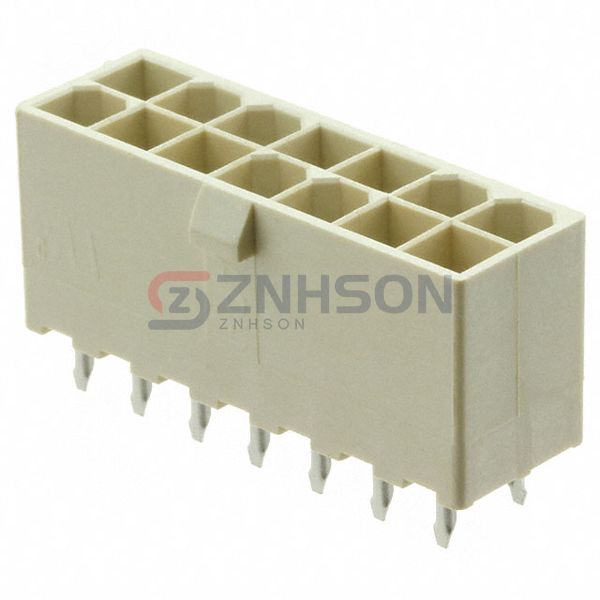

CONN HEADER VERT 14POS 4.2MM
$0.70
Available to order
Reference Price (USD)
5,850+
$0.64400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the G874D141202CEU rectangular connector header from Amphenol ICC (Commercial Products), a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the G874D141202CEU adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Amphenol ICC (Commercial Products) guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.504" (12.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -30°C ~ 80°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 600V
