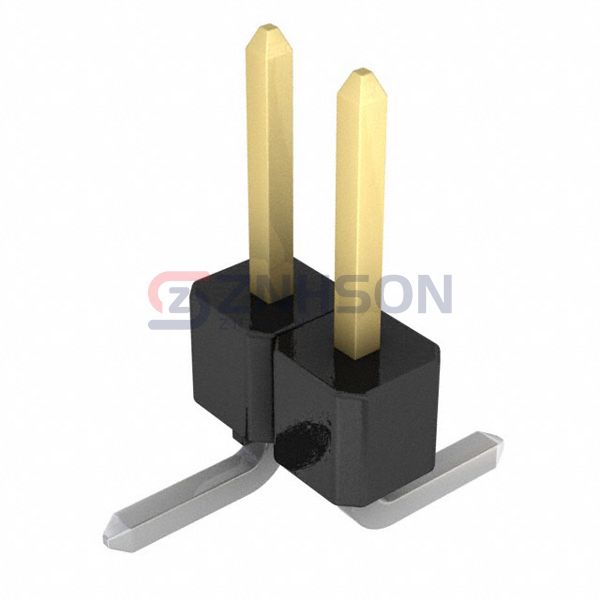

GBC02SABN-M30
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 2POS 2.54MM
$0.36
Available to order
Reference Price (USD)
1+
$0.36000
10+
$0.33800
25+
$0.29000
50+
$0.24660
100+
$0.23680
250+
$0.21268
500+
$0.20300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GBC02SABN-M30 by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
802-10-048-20-001000
Samtec Inc.
STMM-125-01-G-D
Samtec Inc.
TFM-115-01-L-D-A
Sullins Connector Solutions
PEC06SACN
HARTING
09185266927
Amphenol ICC (FCI)
77313-822-32LF
Harwin Inc.
M20-9721146
Preci-Dip

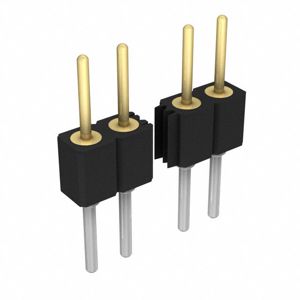

350-V3-159-00-006101
