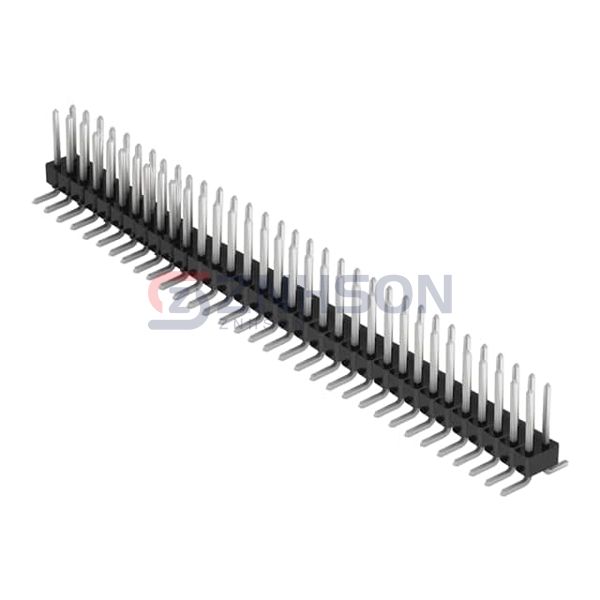

GBC33DABN-M30
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 66POS 2.54MM
$5.94
Available to order
Reference Price (USD)
1+
$5.94000
10+
$5.70200
25+
$5.22720
50+
$4.98960
100+
$4.75200
250+
$4.15800
500+
$4.03920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GBC33DABN-M30 by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 66
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-110-03-L-D
TE Connectivity AMP Connectors
2-647127-6
TE Connectivity Deutsch Connectors
DT15-4P
Preci-Dip
894-70-099-10-001101
Samtec Inc.
FTS-125-01-L-D-P
Sullins Connector Solutions
GRPB242VWVN-RC
Samtec Inc.
TSW-115-23-G-D
Adam Tech

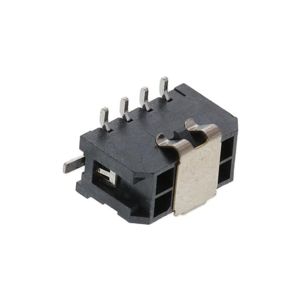

DML-08-A-V-T-TSMT-PP-T/R
