GBEC208-2579B001C1AF
Greenconn
Greenconn
PITCH 1.27MM CONNETOR SMC Q TYPE
$2.36
Available to order
Reference Price (USD)
1+
$2.36000
500+
$2.3364
1000+
$2.3128
1500+
$2.2892
2000+
$2.2656
2500+
$2.242
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

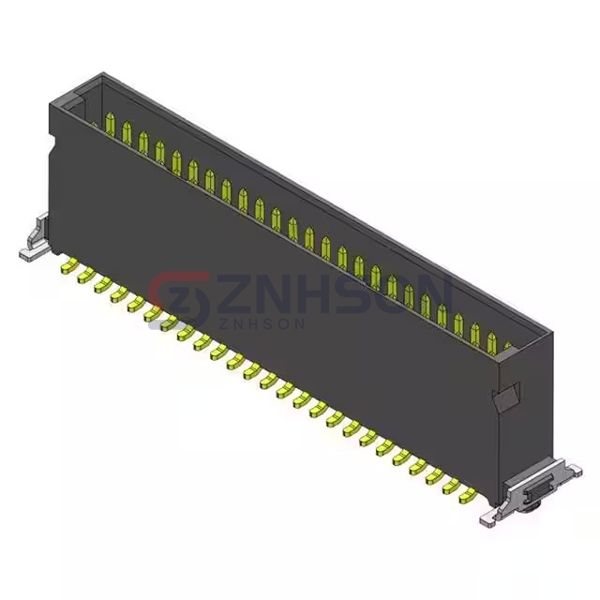

The GBEC208-2579B001C1AF by Greenconn is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the GBEC208-2579B001C1AF supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Greenconn ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.388" (9.86mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.7A per Contact
- Voltage Rating: -
