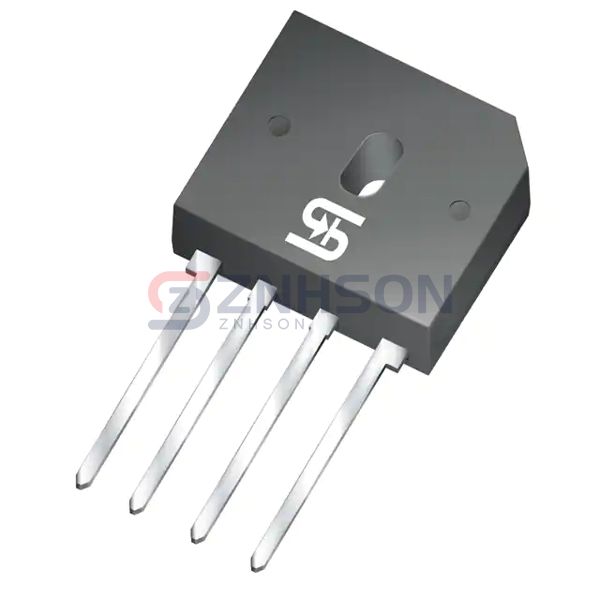

GBU1506
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
15A, 800V, STANDARD BRIDGE RECTI
$2.81
Available to order
Reference Price (USD)
1+
$2.81000
500+
$2.7819
1000+
$2.7538
1500+
$2.7257
2000+
$2.6976
2500+
$2.6695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GBU1506 from Taiwan Semiconductor Corporation is a high-performance bridge rectifier diode designed for efficient AC to DC conversion. As part of the Discrete Semiconductor Products category, this diode ensures reliable performance in various power supply applications. Bridge rectifiers are essential for converting alternating current (AC) to direct current (DC), making them ideal for power supplies, motor drives, and welding equipment. With robust construction and low forward voltage drop, the GBU1506 delivers exceptional efficiency and thermal stability. Whether you're designing industrial machinery or consumer electronics, this diode offers the durability and precision you need. Trust Taiwan Semiconductor Corporation for top-quality discrete semiconductors that meet global standards.
Specifications
- Product Status: Active
- Diode Type: Single Phase
- Technology: Standard
- Voltage - Peak Reverse (Max): 800 V
- Current - Average Rectified (Io): 15 A
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 15 A
- Current - Reverse Leakage @ Vr: 5 µA @ 800 V
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 4-ESIP, GBU
- Supplier Device Package: GBU
