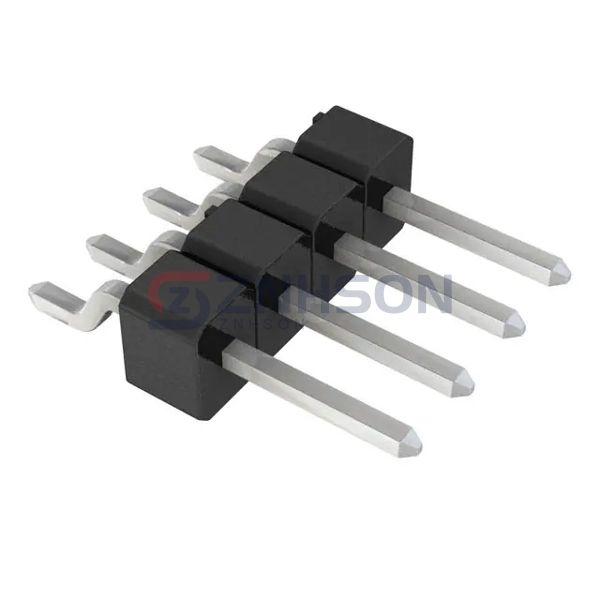

GEC04SBSN-M89
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD R/A 4POS 2.54MM
$0.61
Available to order
Reference Price (USD)
1+
$0.61000
10+
$0.56800
25+
$0.51120
50+
$0.45440
100+
$0.43550
250+
$0.39760
500+
$0.37866
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GEC04SBSN-M89 by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PEC13SBBN
Preci-Dip
802-80-022-20-001101
TE Connectivity AMP Connectors
826950-2
Molex
0537800670
Samtec Inc.
HTSW-135-07-T-D-LL
Mill-Max Manufacturing Corp.
852-40-060-30-001000
Amphenol ICC (FCI)
68015-236
Samtec Inc.
ZSS-112-02-L-D-550
Samtec Inc.

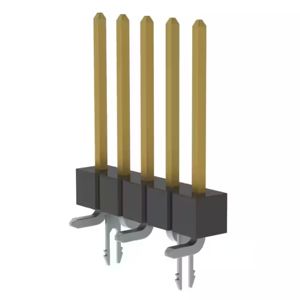

TSM-105-03-S-SV-LC-TR
