GEC36SBSN-M89
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD R/A 36POS 2.54MM
$3.64
Available to order
Reference Price (USD)
1+
$3.64000
10+
$3.25900
100+
$2.68380
500+
$2.12148
1,000+
$1.84600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GEC36SBSN-M89 by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the GEC36SBSN-M89 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
10056844-120ALF
Mill-Max Manufacturing Corp.
800-10-062-61-001000
Molex
0440680006
Preci-Dip
800-80-062-66-001101
Sullins Connector Solutions
PREC031SAAN-RC
Samtec Inc.
TSM-105-01-LM-SH-K
Samtec Inc.
MMT-106-01-L-DH-TR
TE Connectivity AMP Connectors
9-146309-0-35
Sullins Connector Solutions

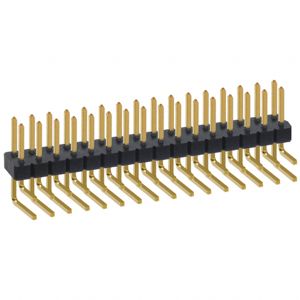

NRPN162PARN-RC
