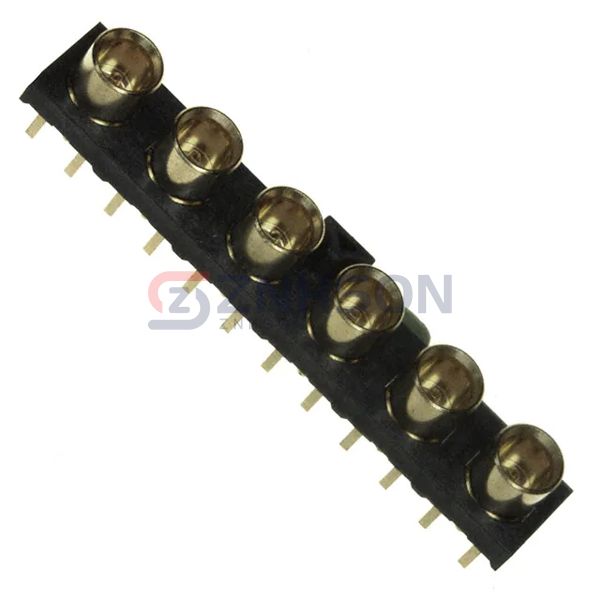

GRF1-J-P-06-E-ST-TH1-E
Samtec Inc.
Samtec Inc.
CONN MMCXV JACK STR 50 OHM PCB
$20.92
Available to order
Reference Price (USD)
1+
$19.36000
13+
$17.97923
26+
$16.13500
52+
$15.67404
104+
$13.83000
260+
$12.90800
507+
$12.63140
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GRF1-J-P-06-E-ST-TH1-E from Samtec Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The GRF1-J-P-06-E-ST-TH1-E variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: MMCX (V)
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 6
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
Related Products
Cinch Connectivity Solutions Johnson
138-4404-107
Amphenol RF
901-9879-RFX
RF Industries
RFN-1020-1
Radiall USA, Inc.
R142077722
Rosenberger

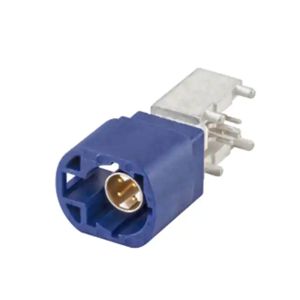

D4S20L-40MA5-C
Radiall USA, Inc.

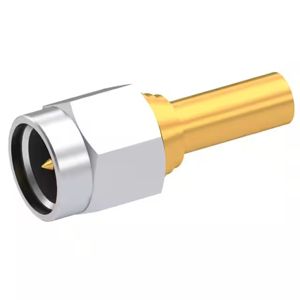

9001-1023-003
Molex

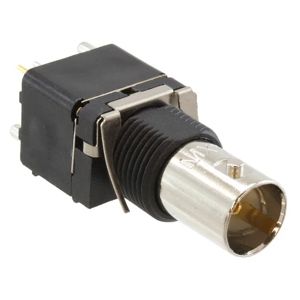

0731010071
TE Connectivity AMP Connectors

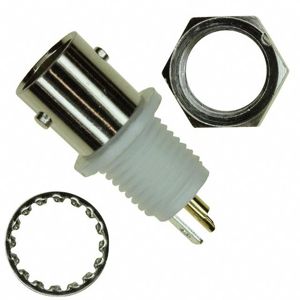

5-1634504-1
RF Industries

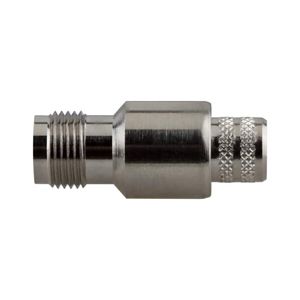

RP-1216-I
