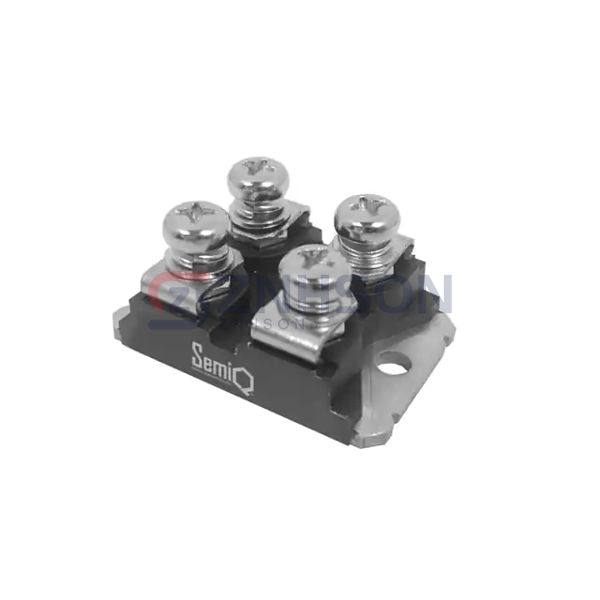

GSXF100A100S1-D3
SemiQ
SemiQ
DIODE FAST REC 1000V 100A SOT227
$36.53
Available to order
Reference Price (USD)
1+
$22.04000
13+
$20.38692
26+
$18.73385
104+
$17.41163
260+
$15.97900
507+
$15.20759
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the GSXF100A100S1-D3 by SemiQ represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With SemiQ's patented junction design, the GSXF100A100S1-D3 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000 V
- Current - Average Rectified (Io) (per Diode): 100A
- Voltage - Forward (Vf) (Max) @ If: 2.35 V @ 100 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 125 ns
- Current - Reverse Leakage @ Vr: 25 µA @ 1000 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227
