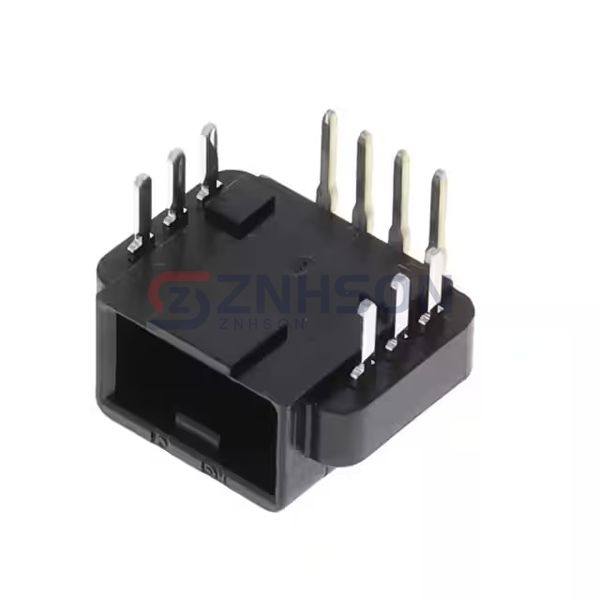

GT8E-4P-DS(55)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 4POS 2MM
$1.73
Available to order
Reference Price (USD)
1+
$1.73000
500+
$1.7127
1000+
$1.6954
1500+
$1.6781
2000+
$1.6608
2500+
$1.6435
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the GT8E-4P-DS(55) rectangular connector header by Hirose Electric Co Ltd. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the GT8E-4P-DS(55) ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Hirose Electric Co Ltd for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.276" (7.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
Related Products
Samtec Inc.
ZSS-115-01-S-D-515
TE Connectivity AMP Connectors
146132-2
Samtec Inc.
TMM-103-01-G-S-RE
Molex
0022288030
Sullins Connector Solutions
PEC12DBCN
Molex
0874370263
Molex

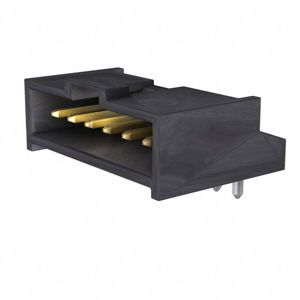

0901362306
Samtec Inc.

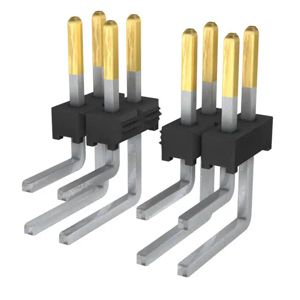

TMM-112-01-L-D-RE
