GZC02SFBN-M30
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 2POS 2.54MM
$0.74
Available to order
Reference Price (USD)
1+
$0.74000
500+
$0.7326
1000+
$0.7252
1500+
$0.7178
2000+
$0.7104
2500+
$0.703
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

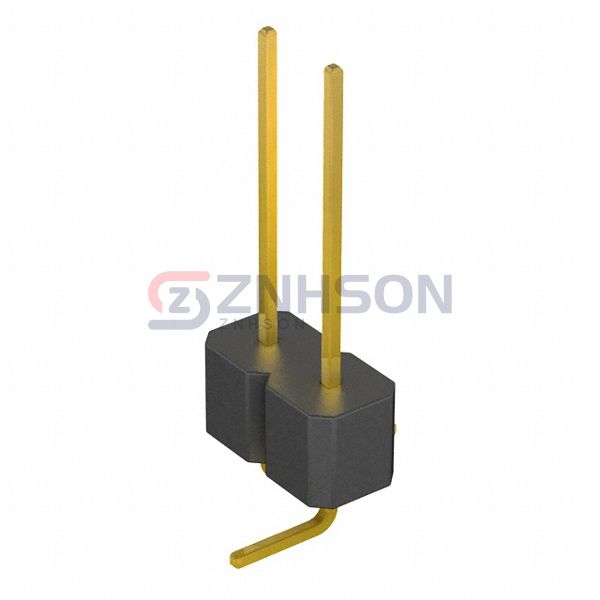

The GZC02SFBN-M30 by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the GZC02SFBN-M30 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 600VDC
