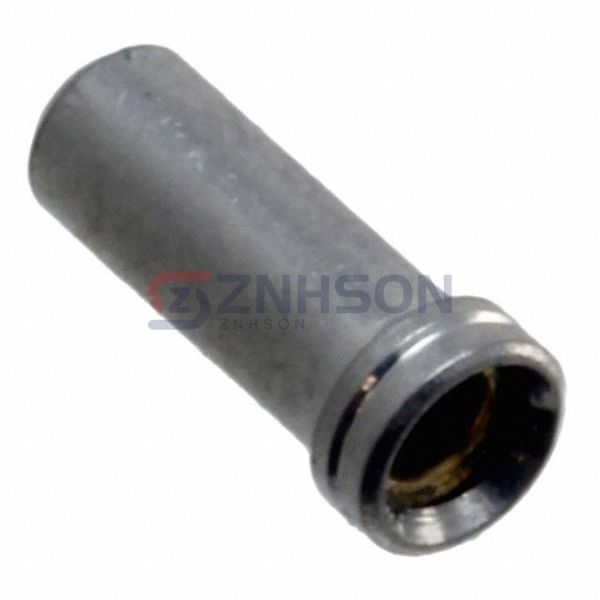

H8504-01
Harwin Inc.
Harwin Inc.
CONN PIN RCPT .024-.033 SOLDER
$0.45
Available to order
Reference Price (USD)
1+
$0.41000
10+
$0.39200
25+
$0.33600
50+
$0.28560
100+
$0.27440
250+
$0.24640
500+
$0.23520
1,000+
$0.19600
2,500+
$0.17920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with the H8504-01 Socket Connector by Harwin Inc.. This versatile component is engineered for seamless integration into a wide range of electronic systems. Featuring robust materials and a user-friendly design, H8504-01 ensures long-lasting performance even in demanding environments. Perfect for applications such as automotive electronics, medical devices, and industrial control systems. Trust Harwin Inc.'s expertise to provide you with a connector that meets the highest standards of quality and reliability.
Specifications
- Product Status: Active
- Tail Type: No Tail
- Termination: Solder
- Length - Overall: 0.224" (5.69mm)
- Accepts Pin Diameter: 0.024" ~ 0.033" (0.60mm ~ 0.85mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: -
- Mounting Hole Diameter: 0.075" ~ 0.079" (1.91mm ~ 2.01mm)
- Flange Diameter: 0.093" (2.36mm)
- Tail Diameter: -
- Socket Depth: 0.183" (4.65mm)
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Contact Finish Thickness: 5.90µin (0.150µm)
