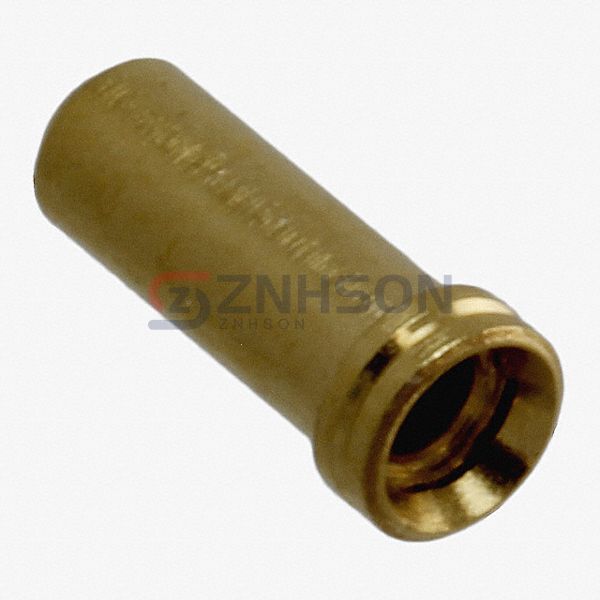

H8504-05
Harwin Inc.
Harwin Inc.
CONN PIN RCPT .024-.033 SOLDER
$0.66
Available to order
Reference Price (USD)
1+
$0.53000
10+
$0.49800
25+
$0.44840
50+
$0.39840
100+
$0.38180
250+
$0.34860
500+
$0.33200
1,000+
$0.27390
2,500+
$0.24900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the H8504-05 PC Pin Receptacle by Harwin Inc.. This high-performance terminal ensures secure and efficient connections in a variety of settings. Whether you're designing military equipment, medical devices, or IoT gadgets, H8504-05 provides the reliability you need. Harwin Inc. prides itself on delivering components that meet the most stringent requirements, making H8504-05 a smart choice for any project.
Specifications
- Product Status: Active
- Tail Type: No Tail
- Termination: Solder
- Length - Overall: 0.224" (5.69mm)
- Accepts Pin Diameter: 0.024" ~ 0.033" (0.60mm ~ 0.85mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: -
- Mounting Hole Diameter: 0.075" ~ 0.079" (1.91mm ~ 2.01mm)
- Flange Diameter: 0.093" (2.36mm)
- Tail Diameter: -
- Socket Depth: 0.183" (4.65mm)
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Contact Finish Thickness: 5.90µin (0.150µm)
