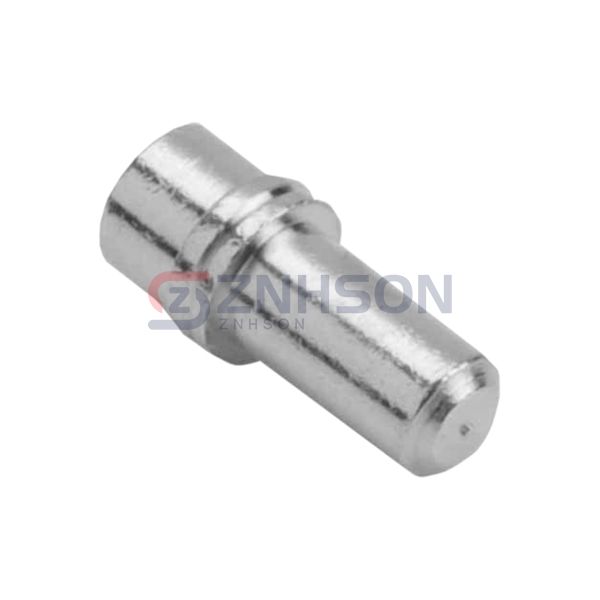

H8505-01
Harwin Inc.
Harwin Inc.
CONN PIN RCPT .023-.033 SOLDER
$0.63
Available to order
Reference Price (USD)
1+
$0.51000
10+
$0.48000
25+
$0.43200
50+
$0.38400
100+
$0.36800
250+
$0.33600
500+
$0.32000
1,000+
$0.26400
2,500+
$0.24000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The H8505-01 PC Pin Receptacle by Harwin Inc. offers superior electrical connectivity for your projects. Designed with precision and durability in mind, this terminal is perfect for high-performance applications. Its compact size and reliable connection make it suitable for use in computers, telecommunications, and aerospace technology. Harwin Inc. ensures that H8505-01 meets all industry standards, providing you with a component you can trust for critical operations.
Specifications
- Product Status: Active
- Tail Type: No Tail
- Termination: Solder
- Length - Overall: 0.232" (5.89mm)
- Accepts Pin Diameter: 0.024" ~ 0.033" (0.60mm ~ 0.85mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: -
- Mounting Hole Diameter: 0.075" ~ 0.079" (1.91mm ~ 2.01mm)
- Flange Diameter: 0.105" (2.67mm)
- Tail Diameter: -
- Socket Depth: 0.183" (4.65mm)
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Contact Finish Thickness: 5.90µin (0.150µm)
