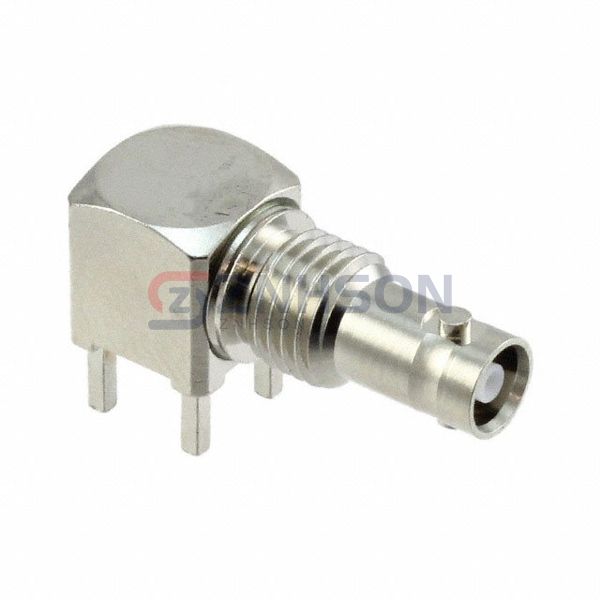

HDBNC-J-P-GN-RA-BH2
Samtec Inc.
Samtec Inc.
CONN HDBNC JACK R/A 75 OHM PCB
$11.29
Available to order
Reference Price (USD)
1+
$9.64000
10+
$9.21800
25+
$8.38000
50+
$7.96100
100+
$7.75150
250+
$6.91352
500+
$6.49450
1,000+
$5.74030
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Samtec Inc. HDBNC-J-P-GN-RA-BH2 exemplifies our commitment to quality in Coaxial Connectors (RF). These connectors feature innovative contact geometries that minimize passive intermodulation (PIM), crucial for modern multi-carrier wireless systems. With available configurations including push-on, threaded, and bayonet coupling styles, they accommodate diverse installation requirements. The product family offers exceptional environmental sealing (IP67 rated options) and flame-retardant material choices. Typical deployments include: Distributed antenna systems (DAS) Avionics test equipment Quantum computing research setups Cable television headend systems. The HDBNC-J-P-GN-RA-BH2 variant is specially designed for high-power handling (up to 500W average power) making it suitable for radar transmitters and scientific instrumentation.
Specifications
- Product Status: Active
- Connector Style: BNC, HD
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: 12G-SDI
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
