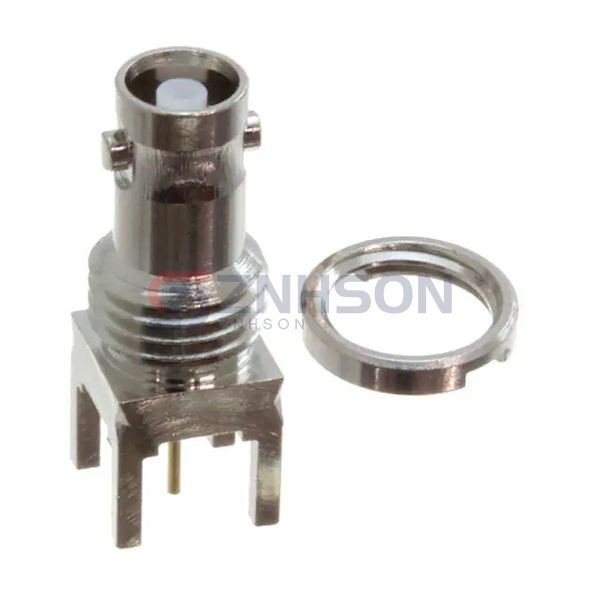

HDBNC-J-P-GN-ST-BH1
Samtec Inc.
Samtec Inc.
CONN HDBNC JACK STR 75OHM PCB
$8.19
Available to order
Reference Price (USD)
1+
$7.30000
10+
$6.99200
25+
$6.38400
50+
$6.08000
100+
$5.77600
250+
$5.16800
500+
$4.86400
1,000+
$4.25600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the HDBNC-J-P-GN-ST-BH1 from Samtec Inc. sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The HDBNC-J-P-GN-ST-BH1 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: BNC, HD
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Panel Mount, Through Hole
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 12 GHz
- Number of Ports: 1
- Features: 12G-SDI
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
Amphenol RF
152134
Amphenol RF

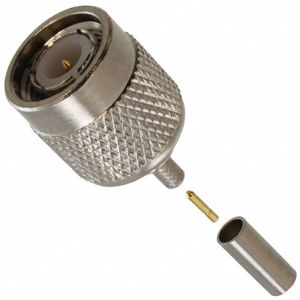

122118
Amphenol RF

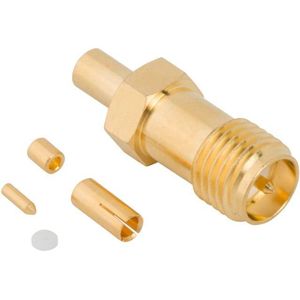

901-10777
Amphenol RF
3FA1-NFSJ-C04W6
Linx Technologies Inc.

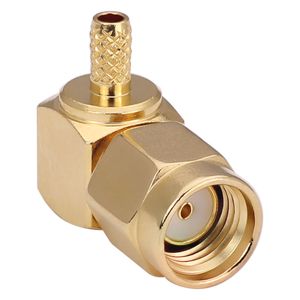

CONREVSMA012-G
Bulgin

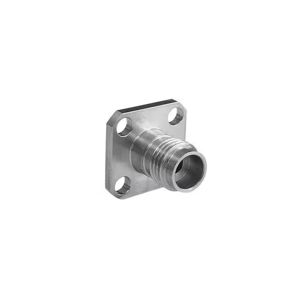

RFSMAA4JAAFFGE
Adam Tech

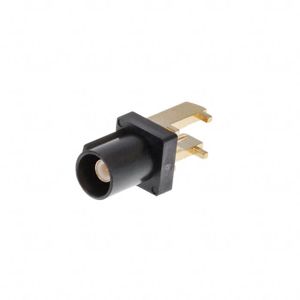

RF55-23A-T-00-50-G-A-SH
Amphenol RF

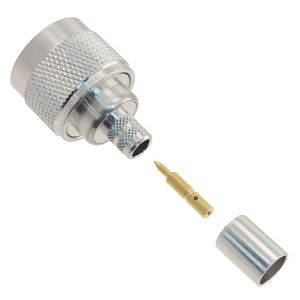

172202
Cinch Connectivity Solutions Trompeter

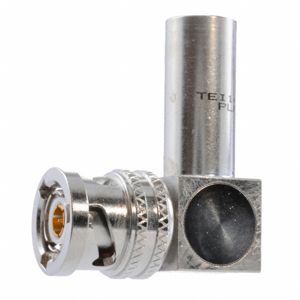

PLR75C-204
