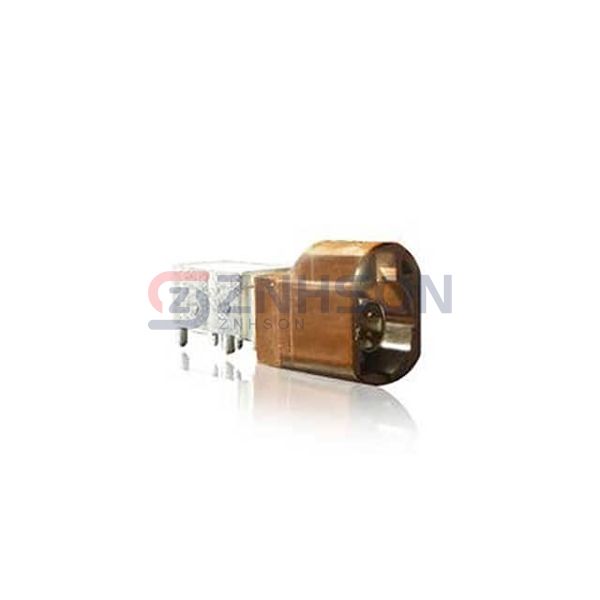

HF109P-0001-0F-VE
Yamaichi Electronics
Yamaichi Electronics
AUTOMOTIVE HF109 SERIERS HSD CON
$2.81
Available to order
Reference Price (USD)
1+
$2.81000
500+
$2.7819
1000+
$2.7538
1500+
$2.7257
2000+
$2.6976
2500+
$2.6695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the HF109P-0001-0F-VE from Yamaichi Electronics sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The HF109P-0001-0F-VE series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: HSD®, Fakra, Quadraxial
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 100Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Latch Lock
- Frequency - Max: 2 GHz
- Number of Ports: 1
- Features: Code F
- Housing Color: Brown
- Ingress Protection: -
- Center Contact Material: -
