HHD1855A
Winchester Interconnect
Winchester Interconnect

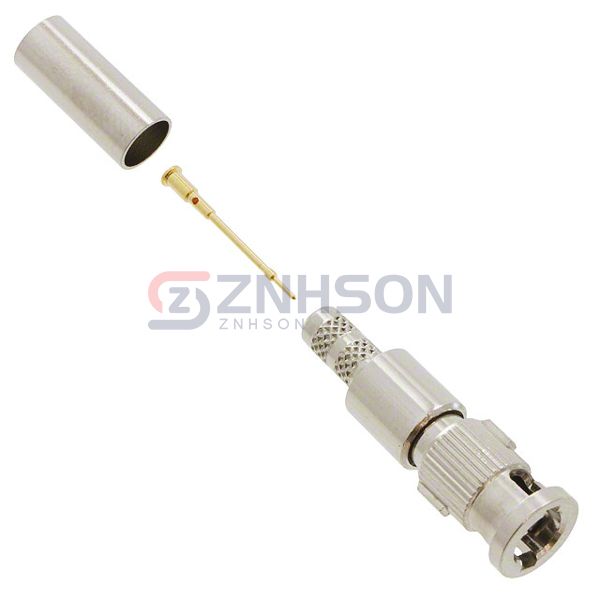

CONN HDBNC PLUG STR 75 OHM CRIMP
$15.31
Available to order
Reference Price (USD)
1+
$10.86000
10+
$10.38400
100+
$8.73200
250+
$7.78800
500+
$7.31600
1,000+
$6.46640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the HHD1855A from Winchester Interconnect sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The HHD1855A series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: BNC, HD
- Connector Type: Plug, Male Pin
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 75Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: Belden 1855A
- Fastening Type: Bayonet Lock
- Frequency - Max: 1 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
