HI-8190PCIF
Holt Integrated Circuits Inc.
Holt Integrated Circuits Inc.
IC ANALOG SWITCH 4 X SPST 16CSP
$4.18
Available to order
Reference Price (USD)
1+
$5.96000
10+
$5.32500
74+
$4.79257
148+
$4.36649
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HI-8190PCIF represents Holt Integrated Circuits Inc.'s cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 17Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 3.3V ~ 15V
- Voltage - Supply, Dual (V±): ±3.3V ~ 15V
- Switch Time (Ton, Toff) (Max): 35ns, 20ns
- -3db Bandwidth: -
- Charge Injection: 4pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 20pF
- Current - Leakage (IS(off)) (Max): 5nA (Max)
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount

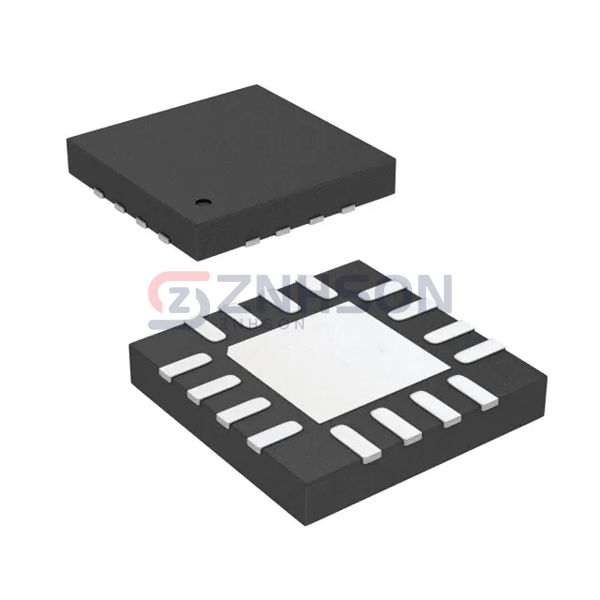

- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-CSP (5x5)
