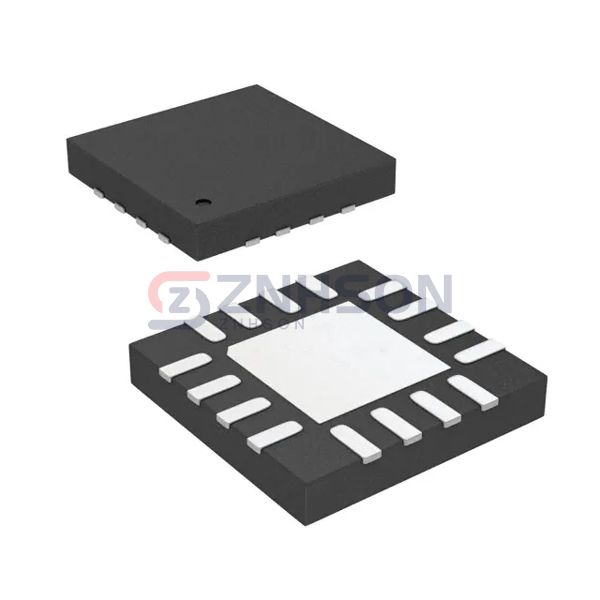

HI-8196PCTF
Holt Integrated Circuits Inc.
Holt Integrated Circuits Inc.
IC ANALOG SWITCH 4 X SPST 16CSP
$7.82
Available to order
Reference Price (USD)
370+
$7.37800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HI-8196PCTF by Holt Integrated Circuits Inc. represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The HI-8196PCTF is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 31Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±3V ~ 10V
- Switch Time (Ton, Toff) (Max): 35ns, 20ns (Typ)
- -3db Bandwidth: -
- Charge Injection: -10pC
- Channel Capacitance (CS(off), CD(off)): 12pF
- Current - Leakage (IS(off)) (Max): 5nA
- Crosstalk: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-CSP (5x5)
