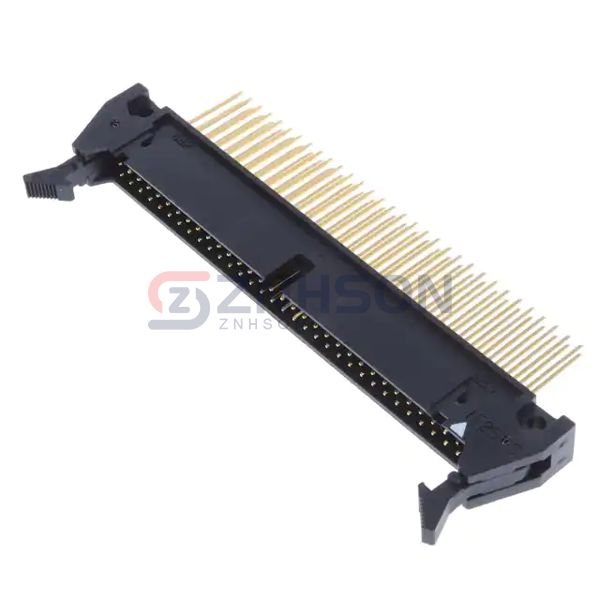

HIF3BB-64P-2.54W(63)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 64
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Wire Wrap
• Fastening Type: Latch Lock/Eject Hooks
• Contact Length - Mating: -
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.701" (17.80mm)
• Contact Shape: Square
• Contact Finish - Mating: -
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: -
• Contact Material: Brass
• Insulation Material: Polybutylene Terephthalate (PBT)
• Features: Keying Slot
• Operating Temperature: -55°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): Varies by Wire Gauge
• Voltage Rating: 200V
