HIF3FC-30PA-2.54DS(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 30POS 2.54MM
$3.70
Available to order
Reference Price (USD)
1+
$3.10000
10+
$2.97600
280+
$2.17000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the HIF3FC-30PA-2.54DS(71) rectangular connector header from Hirose Electric Co Ltd for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Hirose Electric Co Ltd is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 200V
Related Products
Samtec Inc.
TSM-105-02-TM-SH-P
Samtec Inc.
TFC-115-22-L-D-TR
Adam Tech
2PH1-14-UA
Molex
1053131203
TE Connectivity AMP Connectors
4-826631-4
Samtec Inc.
FTSH-118-01-S-DV-K-P
Samtec Inc.
TS-117-T-A
Samtec Inc.
FTS-124-01-F-D

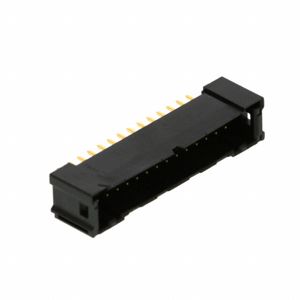

Hirose Electric Co Ltd
