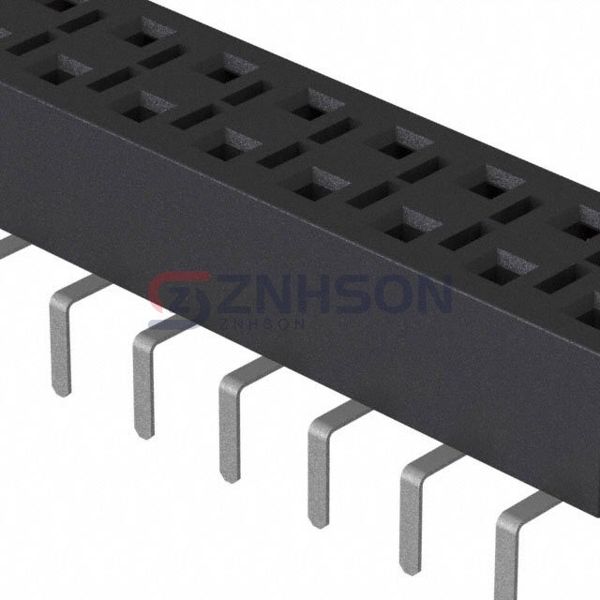

HLE-117-02-S-DV-PE-BE

Specifications

• Product Status: Active
• Connector Type: Receptacle, Bottom Entry, Pass Through
• Contact Type: Female Socket
• Style: Board to Board
• Number of Positions: 34
• Number of Positions Loaded: All
• Pitch - Mating: 0.100" (2.54mm)
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Insulation Color: Black
• Insulation Height: 0.138" (3.50mm)
• Contact Length - Post: 0.090" (2.29mm)
• Operating Temperature: -55°C ~ 125°C
• Material Flammability Rating: -
• Contact Finish - Post: Tin
• Mated Stacking Heights: -
• Ingress Protection: -
• Features: -
• Current Rating (Amps): 4.1A per Contact
• Voltage Rating: 400VAC
