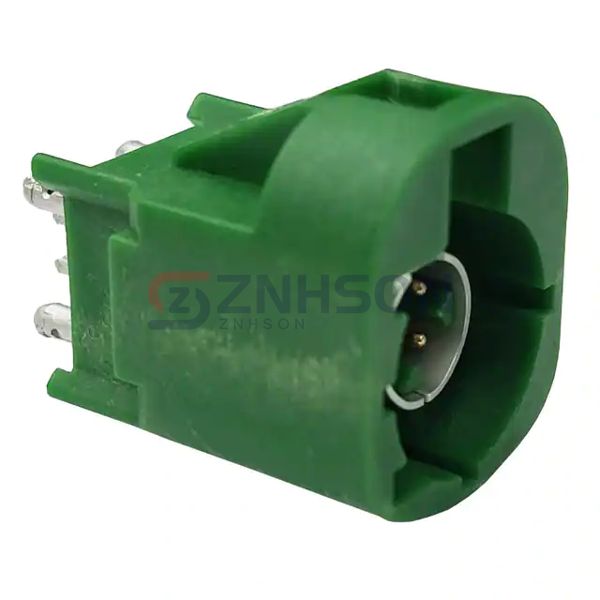

HSD-04E-S-PT-SG-C1-TR
Adam Tech
Adam Tech
CONN FAKRA HIGH SPEED DATA 4POS
$3.17
Available to order
Reference Price (USD)
1+
$3.17000
500+
$3.1383
1000+
$3.1066
1500+
$3.0749
2000+
$3.0432
2500+
$3.0115
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the HSD-04E-S-PT-SG-C1-TR from Adam Tech sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The HSD-04E-S-PT-SG-C1-TR series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: HSD®, Fakra, Quadraxial
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 100Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Latch Lock
- Frequency - Max: 2 GHz
- Number of Ports: 1
- Features: Code E
- Housing Color: Green
- Ingress Protection: -
- Center Contact Material: Brass
