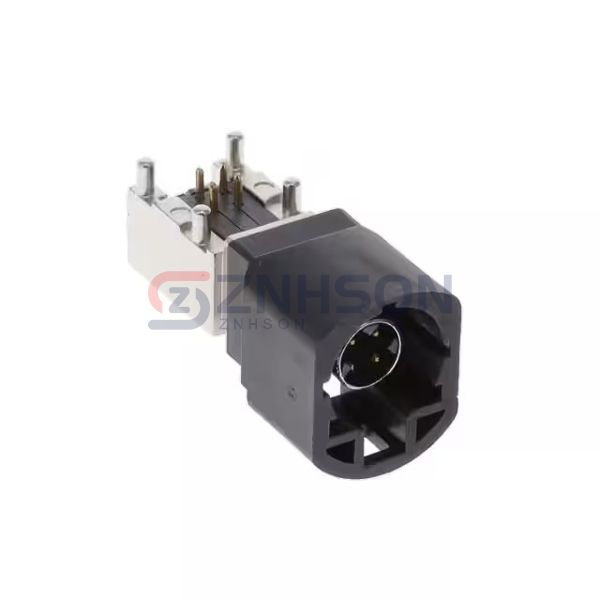

HSDNARPPCB12A
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)
CONN HSD+0 R/A PLUG A CODE
$6.46
Available to order
Reference Price (USD)
1,250+
$4.43850
2,500+
$4.25020
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HSDNARPPCB12A from Amphenol ICC (Commercial Products) represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The HSDNARPPCB12A variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: HSD®, Fakra, Quadraxial
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 100Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Latch Lock
- Frequency - Max: -
- Number of Ports: 1
- Features: Code A
- Housing Color: Black
- Ingress Protection: -
- Center Contact Material: Copper Alloy
Related Products
Cinch Connectivity Solutions Trompeter
BJ26-5
Amphenol RF
903-375J-53P
Cinch Connectivity Solutions Johnson
135-3303-001
RF Industries
RP-1212-B
Cinch Connectivity Solutions Johnson
138-4701-607
Amphenol SV Microwave

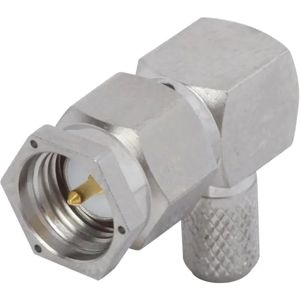

M39012/56-3026
Amphenol RF

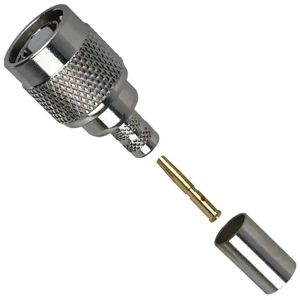

122408RP
Linx Technologies Inc.

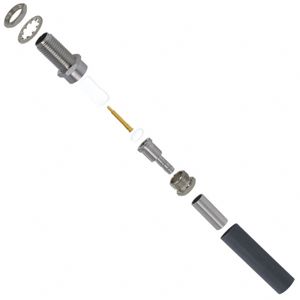

CONREVSMA005
