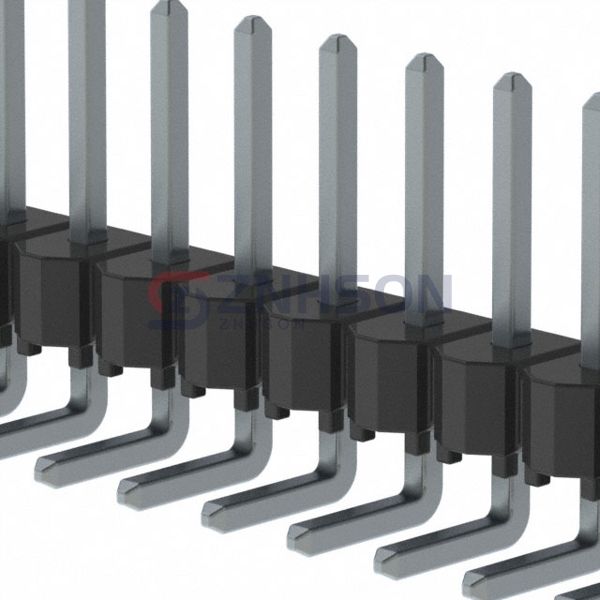

HTSW-120-08-T-S-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 20POS 2.54MM
$2.27
Available to order
Reference Price (USD)
1+
$1.39000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the HTSW-120-08-T-S-RA rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the HTSW-120-08-T-S-RA meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.122" (3.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PEC26SAGN
TE Connectivity AMP Connectors
9-102975-0-35
Mill-Max Manufacturing Corp.
350-10-151-00-001000
TE Connectivity AMP Connectors
5-794637-0
Molex
0022102041
Samtec Inc.
TSM-110-01-S-SV-LC-P
Preci-Dip
351-80-155-00-003101
Samtec Inc.
FTSH-140-01-LM-DH-A
Samtec Inc.

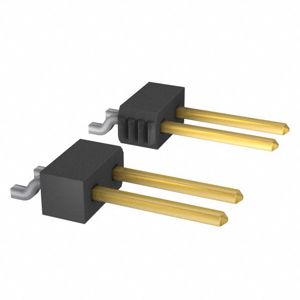

TSM-114-02-L-SH
