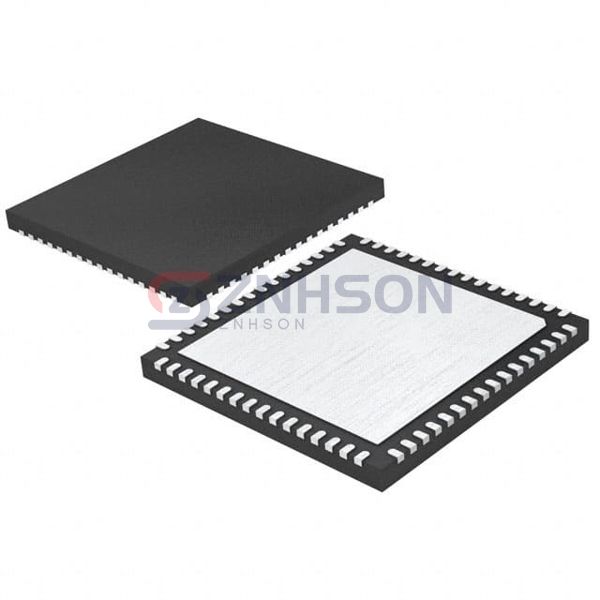

HV2621/R4X
Microchip Technology
Microchip Technology
16-CH 300V MUX (SPST), NO BLEED
$27.63
Available to order
Reference Price (USD)
1+
$27.63000
500+
$27.3537
1000+
$27.0774
1500+
$26.8011
2000+
$26.5248
2500+
$26.2485
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HV2621/R4X from Microchip Technology's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The HV2621/R4X is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPST
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 30Ohm
- Channel-to-Channel Matching (ΔRon): 1.5Ohm
- Voltage - Supply, Single (V+): 3V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 6µs, 6µs
- -3db Bandwidth: -
- Charge Injection: 1000pC
- Channel Capacitance (CS(off), CD(off)): 10pF
- Current - Leakage (IS(off)) (Max): 15µA
- Crosstalk: -70dB @ 5MHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-VFQFN Exposed Pad
- Supplier Device Package: 64-VQFN (9x9)
