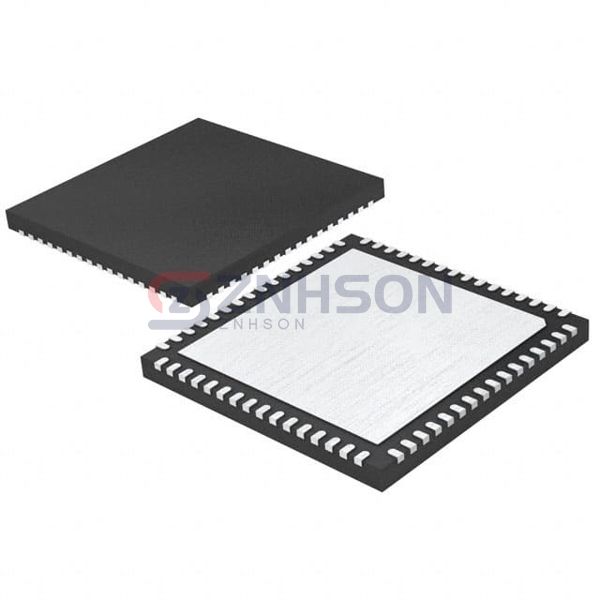

HV2722/R4X
Microchip Technology
Microchip Technology
16-CH 300V MUX (SPST), ONE BLEED
$28.14
Available to order
Reference Price (USD)
1+
$28.14000
500+
$27.8586
1000+
$27.5772
1500+
$27.2958
2000+
$27.0144
2500+
$26.733
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HV2722/R4X by Microchip Technology represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The HV2722/R4X is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPST
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 30Ohm
- Channel-to-Channel Matching (ΔRon): 1.5Ohm
- Voltage - Supply, Single (V+): 3V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 6µs, 6µs
- -3db Bandwidth: -
- Charge Injection: 1000pC
- Channel Capacitance (CS(off), CD(off)): 10pF
- Current - Leakage (IS(off)) (Max): 15µA
- Crosstalk: -70dB @ 5MHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-VFQFN Exposed Pad
- Supplier Device Package: 64-VQFN (9x9)
