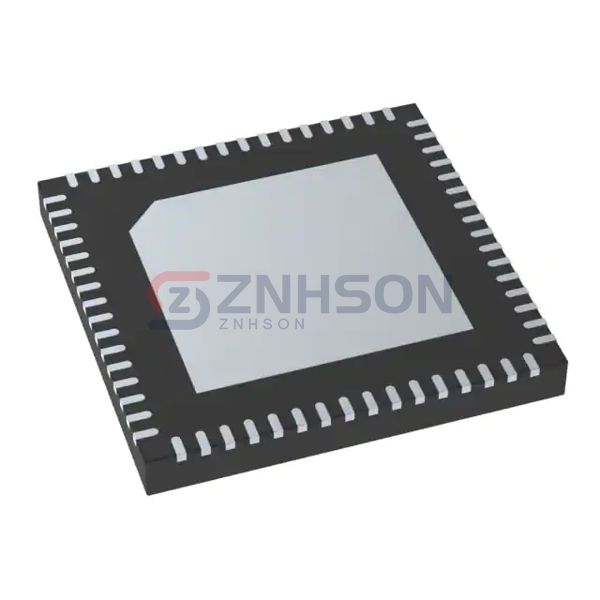

HV2918/R4X
Microchip Technology
Microchip Technology
32-CH 200V +5V BIAS MUX SPDT
$34.07
Available to order
Reference Price (USD)
1+
$34.07000
500+
$33.7293
1000+
$33.3886
1500+
$33.0479
2000+
$32.7072
2500+
$32.3665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HV2918/R4X from Microchip Technology is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The HV2918/R4X is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 16
- On-State Resistance (Max): 9Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 4.5V ~ 6.3V
- Voltage - Supply, Dual (V±): 4.5V ~ 6.3V
- Switch Time (Ton, Toff) (Max): 5µs, 5µs
- -3db Bandwidth: 50MHz
- Charge Injection: 100pC
- Channel Capacitance (CS(off), CD(off)): 21pF
- Current - Leakage (IS(off)) (Max): 3µA
- Crosstalk: -70dB @ 5MHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-VFQFN Exposed Pad
- Supplier Device Package: 64-VQFN (9x9)
