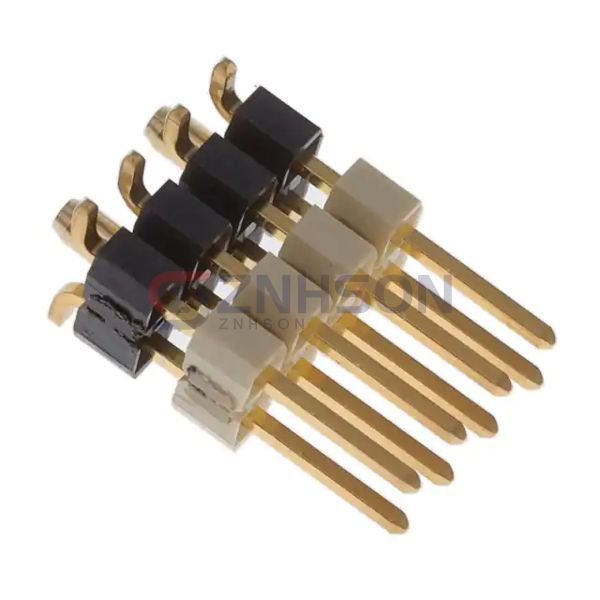

HW-04-15-G-D-315-SM-A
Samtec Inc.
Samtec Inc.
CONN HDR 8POS 0.1 STACK SMD GOLD
$2.86
Available to order
Reference Price (USD)
1+
$1.97000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layouts with the HW-04-15-G-D-315-SM-A by Samtec Inc., a high-quality rectangular connector for board spacers and stackers. Designed for versatility, these connectors support various pitch options and mounting styles. The HW-04-15-G-D-315-SM-A is ideal for use in LED lighting, power supplies, and wearable technology. Specific applications include LED displays, AC/DC converters, and fitness trackers where compact and reliable connections are vital.
Specifications
- Product Status: Active
- Number of Positions: 8
- Pitch: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing: 0.100" (2.54mm)
- Length - Overall Pin: 0.565" (14.351mm)
- Length - Post (Mating): 0.250" (6.350mm)
- Length - Stack Height: 0.315" (8.000mm)
- Length - Tail: -
- Mounting Type: Surface Mount
- Termination: Solder
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
- Color: Black
