IKZ75N65ES5XKSA1
Infineon Technologies
Infineon Technologies

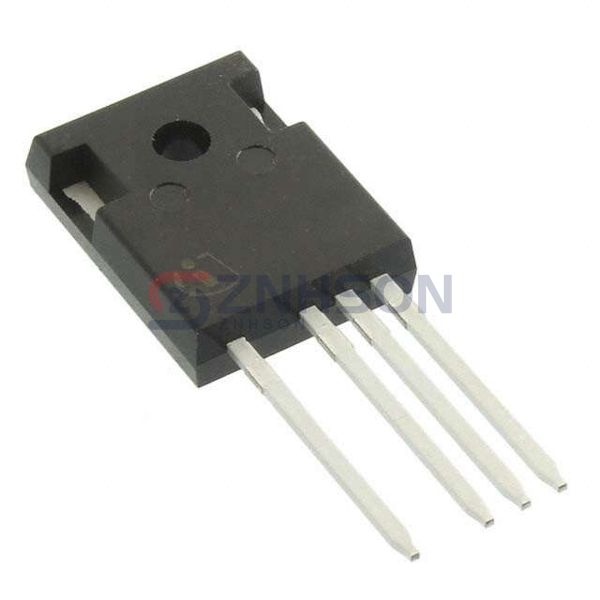

IGBT TRENCH 650V 80A TO247-4
$8.63
Available to order
Reference Price (USD)
1+
$9.04000
10+
$8.23000
240+
$6.92358
720+
$6.11151
1,200+
$5.40538
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the IKZ75N65ES5XKSA1 Single IGBT transistor from Infineon Technologies. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the IKZ75N65ES5XKSA1 ensures precision and reliability. Infineon Technologies's cutting-edge technology guarantees a component that meets the highest industry standards. Choose IKZ75N65ES5XKSA1 for efficient and durable power solutions.
Specifications
- Product Status: Active
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 1.75V @ 15V, 75A
- Power - Max: 395 W
- Switching Energy: 1.3mJ (on), 1.5mJ (off)
- Input Type: Standard
- Gate Charge: 164 nC
- Td (on/off) @ 25°C: 46ns/405ns
- Test Condition: 400V, 15A, 22.3Ohm, 15V
- Reverse Recovery Time (trr): 72 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: PG-TO247-4
