IL-AG5-16P-D3L2-A
JAE Electronics
JAE Electronics
CONN HEADER R/A 16POS 2.5MM
$2.32
Available to order
Reference Price (USD)
1+
$1.94000
10+
$1.76400
100+
$1.51200
500+
$1.26000
1,000+
$1.08000
5,000+
$0.95760
10,000+
$0.93600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the IL-AG5-16P-D3L2-A rectangular connector header from JAE Electronics. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the IL-AG5-16P-D3L2-A is perfect for automotive, industrial, and consumer electronics. JAE Electronics ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.331" (8.40mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.591" (15.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Board Guide
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Preci-Dip
850-10-019-40-001101
Samtec Inc.
TMM-124-01-T-S
Samtec Inc.
TSW-116-23-L-S
Molex
5054331491
TE Connectivity AMP Connectors
2-292141-8
Samtec Inc.
FTMH-138-02-F-DH-K-TR
TE Connectivity AMP Connectors
1-1123309-2
Amphenol ICC (FCI)

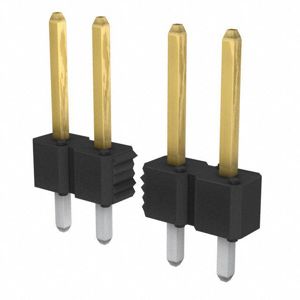

77311-827-21LF
Amphenol ICC (FCI)

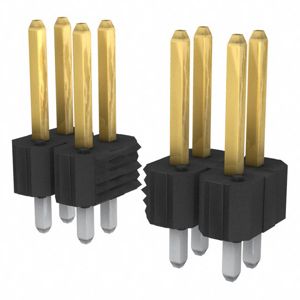

67996-372H
