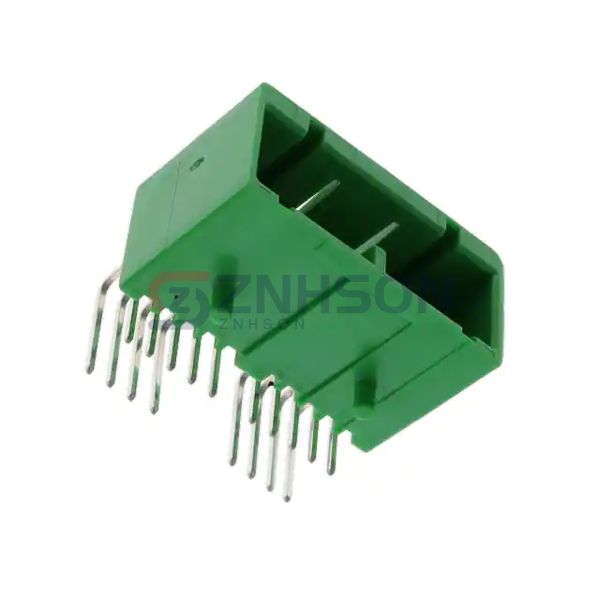

IL-AG5-18P-D3L2
JAE Electronics
JAE Electronics
CONN HEADER R/A 18POS 2.5MM
$2.81
Available to order
Reference Price (USD)
1+
$2.48000
10+
$2.25400
25+
$2.11600
50+
$2.02400
100+
$1.93200
250+
$1.74800
500+
$1.61000
1,000+
$1.38000
2,500+
$1.28800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the IL-AG5-18P-D3L2 rectangular connector header from JAE Electronics for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JAE Electronics is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.331" (8.40mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.591" (15.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Board Guide
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
