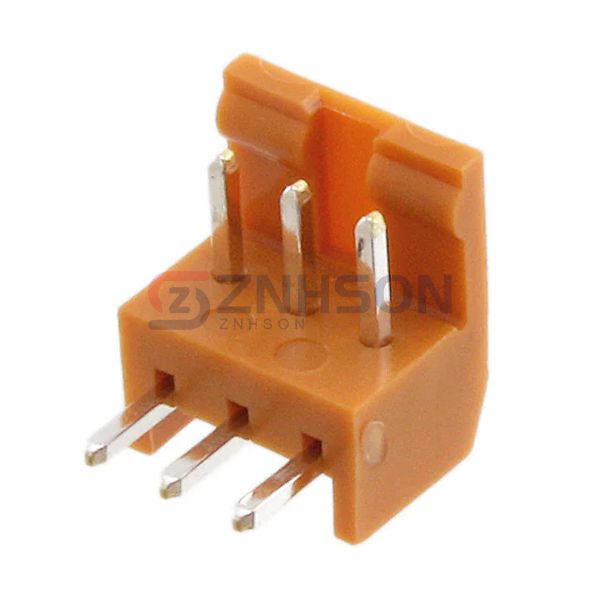

IL-G-3P-S3L2-SA
JAE Electronics
JAE Electronics
CONN HEADER R/A 3POS 2.5MM
$0.58
Available to order
Reference Price (USD)
1+
$0.48000
10+
$0.45000
100+
$0.34500
500+
$0.30000
1,000+
$0.24750
5,000+
$0.21750
10,000+
$0.20250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IL-G-3P-S3L2-SA male pin header by JAE Electronics offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose JAE Electronics for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.236" (6.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Brown
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
