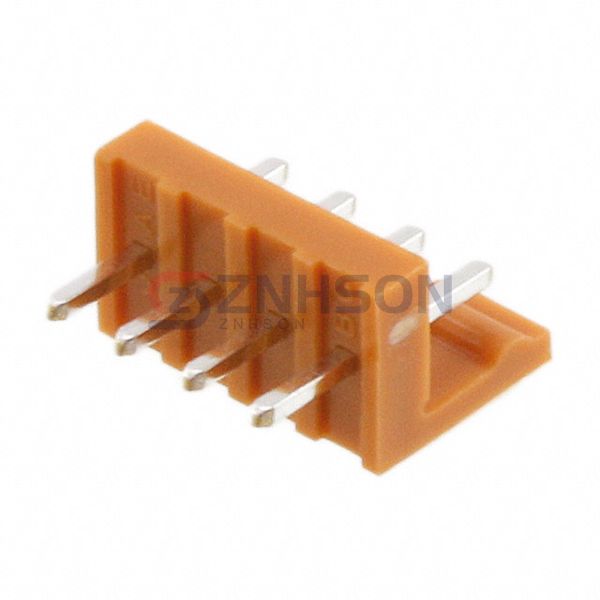

IL-G-4P-S3T2-SA
JAE Electronics
JAE Electronics
CONN HEADER VERT 4POS 2.5MM
$0.50
Available to order
Reference Price (USD)
1+
$0.45000
10+
$0.42000
100+
$0.32200
500+
$0.28000
1,000+
$0.23100
5,000+
$0.20300
10,000+
$0.18900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IL-G-4P-S3T2-SA by JAE Electronics is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JAE Electronics delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.378" (9.60mm)
- Insulation Height: 0.280" (7.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Brown
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
