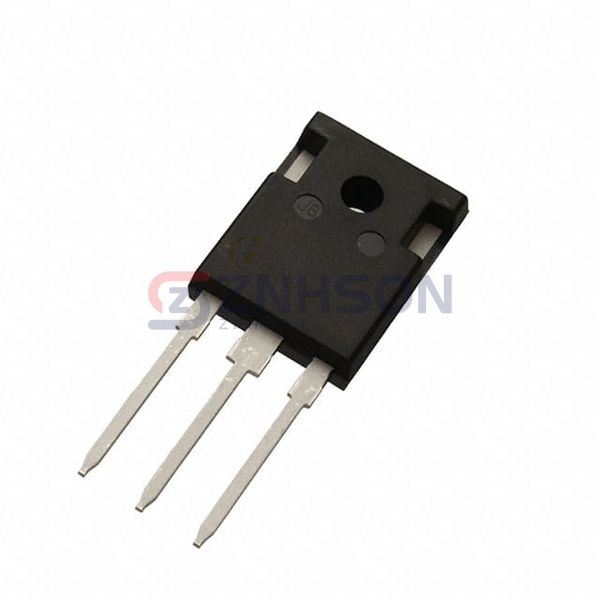

IMW120R030M1HXKSA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1.2KV 56A TO247-3
$28.15
Available to order
Reference Price (USD)
1+
$28.15000
500+
$27.8685
1000+
$27.587
1500+
$27.3055
2000+
$27.024
2500+
$26.7425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IMW120R030M1HXKSA1 from Infineon Technologies redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the IMW120R030M1HXKSA1 offers the precision and reliability you need. Trust Infineon Technologies to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 56A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V, 18V
- Rds On (Max) @ Id, Vgs: 40mOhm @ 25A, 18V
- Vgs(th) (Max) @ Id: 5.7V @ 10mA
- Gate Charge (Qg) (Max) @ Vgs: 63 nC @ 18 V
- Vgs (Max): +23V, -7V
- Input Capacitance (Ciss) (Max) @ Vds: 2120 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 227W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PG-TO247-3-41
- Package / Case: TO-247-3
